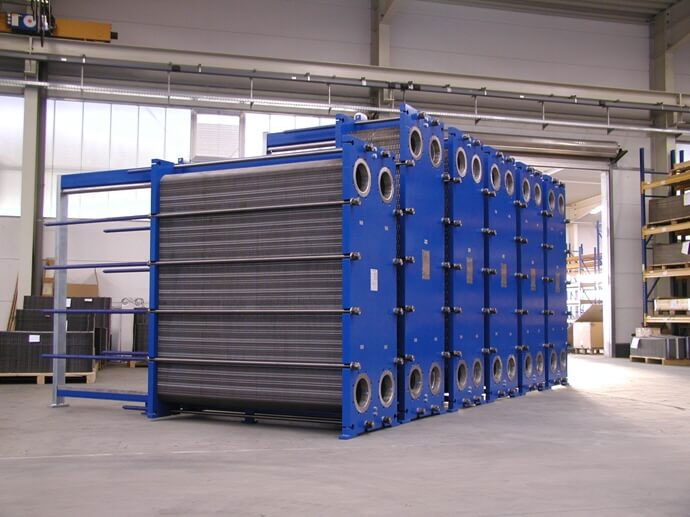

A plate heat exchanger (PHE) is a type of heat exchanger that utilizes a series of thin, corrugated plates to transfer heat between two or more fluids. It’s known for its high thermal efficiency and compact design compared to other heat exchangers. Plate heat exchangers are widely used in various applications, including HVAC systems, food and beverage processing, and chemical industries.

Operation

• 1. Fluid Flow: Fluids enter the heat exchanger through the inlet ports and flow through alternating channels between the plates. The plates are arranged in a stack, with the fluids flowing in alternate channels to ensure efficient heat transfer.
• 2. Heat Transfer: Heat is transferred through the plates from the hot fluid to the cold fluid. The corrugated surface of the plates increases the surface area and turbulence, enhancing heat transfer efficiency.
• Pool Fences & Gates
• 3. Fluid Separation: The gaskets between the plates ensure that the fluids remain separated and do not mix. The arrangement of the plates forces the fluids to flow in a specific pattern, optimizing heat exchange.
• 4. Exit: The cooled fluid exits through its designated outlet ports, while the heated fluid exits through its own ports.

Types of Plate Heat Exchangers

• 1. Gasketed Plate Heat Exchangers:
  • Description: Have gaskets between each plate to seal the fluid channels and prevent leakage.
  • Advantages: Easy to maintain and clean; suitable for applications with moderate pressures and temperatures.
  • Disadvantages: Gaskets can be susceptible to wear and leakage over time.
• 2. Welded Plate Heat Exchangers, Also called as Pillow Plate Heat Exchangers:
  • Description: Plates are welded together, eliminating the need for gaskets.
  • Advantages: More resistant to high pressures and temperatures; suitable for aggressive fluids and applications requiring high reliability.
  • Disadvantages: Difficult to clean and maintain; cannot be dismantled for inspection.
• 3. Semi-Welded Plate Heat Exchangers:
  • Description: Combine welded and gasketed designs, with some plates welded and others sealed with gaskets.
  • Advantages: Suitable for applications where one fluid is corrosive or aggressive, while the other is not.
  • Disadvantages: Maintenance is more complex than gasketed designs but offers better resistance to aggressive fluids.

Applications

• HVAC Systems: Used for heating and cooling in buildings and industrial processes.
• Food and Beverage Industry: For pasteurization and other heat transfer processes.
• Chemical Processing: Involved in various processes requiring heat exchange.
• Oil and Gas: For heating and cooling of process fluids.

Advantages
High Efficiency: The design allows for a large surface area in a compact space, leading to high heat transfer efficiency.
Compact Size: Takes up less space compared to other heat exchanger types.
Flexible Design: Can be customized for different applications by adjusting plate configurations and materials.
Disadvantages
Maintenance: Gasketed models require regular maintenance and gasket replacement; welded models are harder to maintain and clean.
Cost: Initial cost can be higher than some other types of heat exchangers, though operational costs may be lower due to efficiency.
